Slips

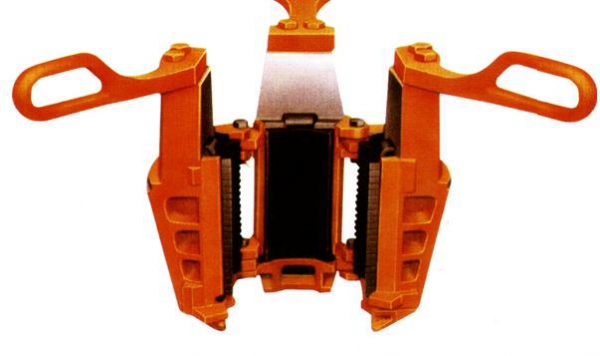

Slips --type SD (drill pipe)

Model	Size of slip bodies		3 1/2			4 1/2					5
SDS	OP. OD	in	2 3/8	2 7/8	3 1/2	3 1/2	4		4 1/2		4	4 1/2		5
		mm	60.3	73	88.9	88.9	101.6		114.3		101.6	114.3		127
	Weight	kg	53.1	50.3	48.5	64.9	61.7		57.6
		lb	117	111	107	143	136		127
SDML	OP. OD	in	2 3/8	2 7/8	3 1/2	3 1/2	4		4 1/2		4	4 1/2		5
		mm	60.3	73	88.9	88.9	101.6		114.3		101.6	114.3		127
	Weight	kg	87.8	85.3	81.6	94	90.3		85.3		92.5	88.9		84
		lb	193	188	180	207	199		188		204	196		185
SDXL	OP. OD	in	-	-	-	3 1/2	4		4 1/2		4	4 1/2		5
		mm	-	-	-	88.9	101.6		114.3		101.6	114.3		127
	Weight	kg	-	-	-	103.9	99.3		93		107.5	103		96.6
		lb	-	-	-	229	219		205		237	227		213
Model	Size of slip bodies		5 1/2			5 7/8					7
SDML	OP. OD	in	4 1/2	5	5 1/2
		mm	114.3	127	139.7	-		-		-	-		-	-
	Weight	kg	90.9	84	82.1	-		-		-	-		-	-
		lb	200	185	181	-		-		-	-		-	-
SDXL	OP. OD	in	4 1/2	5	5 1/2
		mm	114.3	127	139.7	146.1		149.2			149.2		168.3	177.8
	Weight	kg	106.1	101.5	95.3
		lb	234	224	210

Slips --type W

Model		W 3 ¹/₂- 5/100
Outside diameter	in	2 7/8		3 1/2		4		4 1/2			4 1/2		4 3/4		5
	mm	73.025		88.9		101.6		104.775			114.3		120.65		127
Max. Capacity		1000
Model		W 5 - 7/100
Outside diameter	in	5	5 1/2		5 9/16		5 3/4		6 1/8	6 1/4		6 1/2		6 5/8		7
	mm	127	139.7		141.3		146.1		155.6	158.8		165.1		168.3		177.8
Max. Capacity		1000

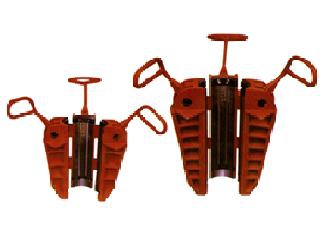

Slips --type B (Drill Pipe)

Model	Size of slip bodies			4.1/2							5.1/2					Depth of Well (feet)
B-S	OP. OD	in		2.3/8	2.7/8		3.1/2	4		4.1/2	-	-		-	-	8000
		mm		60.3	73		88.9	101.6		114.3
B-L	OP. OD	in		2.3/8	2.7/8		3.1/2	4		4.1/2	-	-		-	-	18000
		mm		60.3	73		88.9	101.6		114.3
Model	Size of slip bodies			4.1/2							5					Depth of Well (feet)
B-XL	OP. OD		in	3.1/2		4			4.1/2		4		4.1/2		5	28500
			mm	88.9		101.6			114.3		101.6		114.3		127

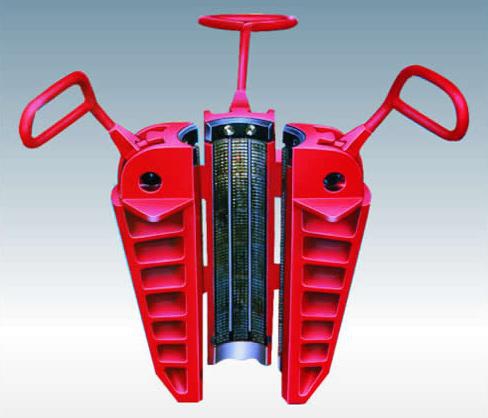

Slips --type DU (Drill Pipe)

Model	Size of slip bodies		4.1/2
DU	OP. OD	in	2.3/8	2.7/8	3.1/2	4	4.1/2
DU	OP. OD	mm	60.3	73	88.9	101.6	114.3
DUL	OP. OD	in	2.3/8	2.7/8	3.1/2	4	4.1/2
DUL	OP. OD	mm	60.3	73	88.9	101.6	114.3
SDU	OP. OD	in	-	-	-	-	-
SDU	OP. OD	mm	-	-	-	-	-
Model	Size of slip bodies		5.1/2
DU	OP. OD	in	3.1/2	4	4.1/2	5	5.1/2
DU	OP. OD	mm	88.9	101.6	114.3	127	139.7
DUL	OP. OD	in	3.1/2	4	4.1/2	5	5.1/2
DUL	OP. OD	mm	88.9	101.6	114.3	127	139.7
SDU	OP. OD	in	3.1/2	4	4.1/2	5	5.1/2
SDU	OP. OD	mm	88.9	101.6	114.3	127	139.7
Model	Size of slip bodies		7
DU	OP. OD	in	4.1/2	5	5.1/2	6.5/8	7
DU	OP. OD	mm	114.3	127	139.7	168.3	177.8
DUL	OP. OD	in	-	-	-	-	-
DUL	OP. OD	mm	-	-	-	-	-
SDU	OP. OD	in	4.1/2	5	5.1/2	6.5/8	7
SDU	OP. OD	mm	114.3	127	139.7	168.3	177.8

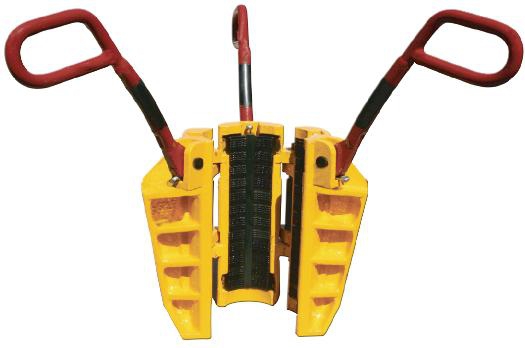

Slips --type DCS (Drill Collar)

Model		DCS-S				DCS-R
DC OD	in	3 ~ 4		4 ~ 4 7/8		4 1/2~6		5 1/2~7
	mm	76.2~101.6		101.6~123.8		114.3~152.4		139.7~177.8
Weight	kg	51		47		54		51
	lb	112		103		120		112
Use in Insert Bowl No.		APIorNo.3
Model		DCS-L
DC OD	in	6 3/4~8 1/4	8~9 1/2		8 1/2~10	9 1/4~11 1/4	11~12 3/4		12~14
	mm	171.4~209.6	203.2~241.3		215.9~254	235~285.7	279.4~323.9		304.8~355.6
Weight	kg	70	78		84	90	116		107
	lb	154	173		185	198	256		237
Use in Insert Bowl No.		APIorNo.3			No.2		No.1

Slips --type A (Drill Collar)

Model			Тип A
DC OD	in		3-41/2		31/4-43/4		41/4-53/4	51/2–7	63/4-81/4	81/4–10	10-113/4
	mm	76.2~114.3		82.6~120.7		108~146.1		139.7~177.8	171.5~209.6	209.6~254	254~295.5
Use in Insert Bowl No.		API or No.3									No.2

Slips --type WT (Drill Collar)

Model		WT 4 1/2~6	WT 5 1/2~7	WT 6 3/4~8 1/4	WT 8~9 1/2
DC OD	in	4 1/2~6	5 1/2~7	6 3/4~8 1/4	8~9 1/2
DC OD	mm	114.3~152.4	139.7~177.8	171.4~209.6	203.2~241.3
Weight	kg	49	46	42	39
Weight	lb	108	101	92	86
Use in Insert Bowl No.		API or No.3
Max. Capacity		40 short tons

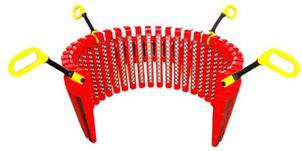

Slips --type UC-3 (Обсадная Труба)

Casing OD		Use in Insert Bowl No.	Total number of segments	Total number of Inserts	Taper	Rated Capacity
in	mm	Use in Insert Bowl No.	Total number of segments	Total number of Inserts	Taper	Rated Capacity
7	177.8	8 5/8	10	10	1:3	250
7 5/8	193.7
8 5/8	219.1
9	228.6	10 3/4	10	10	1:4
9 5/8	244.5
10 3/4	273.1
11 3/4	298.5	13 3/8	12	12
12 3/4	323.9
13 3/8	339.7
16	406.4	Как 13 3/8	14	14
18 5/8	473.1		17	17
20	508		17	17
22 1/2	571.5		19	19
24	609.6		19	19
26	660.4		21	21
30	762		24	24
36	914.4		28	28
42	1066.8		32	32

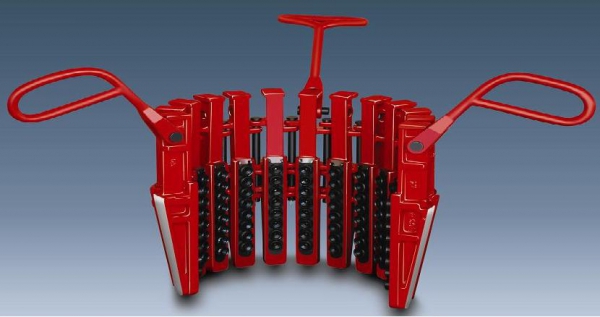

Slips --type CMS (Casing)

Casing OD	in	4 1/2	4 3/4	5	5 1/2	5 3/4	6	6.5/8	7	7 5/8	8 5/8
Casing OD	mm	114.3	120.6	127	139.7	146	152.4	168.3	177.8	193.7	219.1
Weight	kg							89	84	75	82
Weight	lb							196	184	166	181
Total number of segments		9						12	12	12	13
Use in Insert Bowl No.		API or No.3
Casing OD	in	9.5/8	10.3/4	11.3/4	13.3/8	16	18.5/8	20	24	26	30
Casing OD	mm	244.5	273.1	298.5	339.7	406.4	473.1	508	609.6	660.4	762
Weight	kg	87	95	118	112	140	167	174	201	220	248
Weight	lb	192	209	260	247	308	367	383	443	486	546
Total number of segments		14	15	17	18	21	25	26	30	33	37
Use in Insert Bowl No.		No.2		No.1		Match with Relevant Bushing

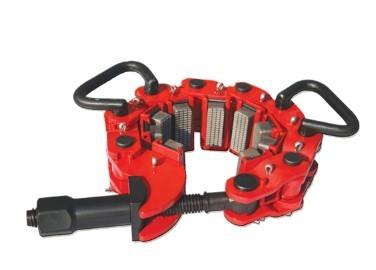

Slips --type MP

Model	Size Range (in)	Total number of Links
MP-S	2 7/8~4 1/8	7
MP-S	4~5	8
MP-R	4 1/2~5 5/8	7
	5 1/2~7	8
	6 3/4~8 1/4	9
	8~9 1/4	10
	9 1/4~10 1/2	11
MP-M	10 1/2~11 1/2	12
	11 1/2~12 1/2	13
	12 1/2~13 5/8	14
	13 5/8~14 3/4	15
	14 3/4~15 7/8	16
MP-L	15 7/8~17	17
	17~18 1/8	18
	18 1/8~19 3/8	19
MP-XL	19 3/8~20 3/8	19
	20 3/8~21 1/2	20
	21~22 5/8	21
	22 5/8~23 3/4	22
	23 3/4~24 7/8	23
	24 7/8~26	24
	26~27 1/8/	25
	29 3/8~30 1/2	28
