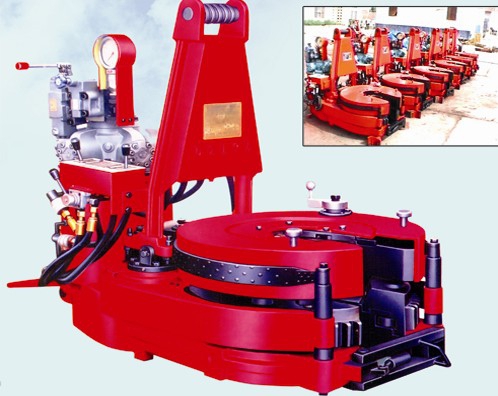

Hydraulic power tong

Model			XQ89/3Y3YC	XQ114/6YB	XQ140/12Y	XQ140/12Y-T
Applicable range main tong		mm	60-89	60-114	60-140	48-140
Applicable range main tong		in	2³/₈～3¹/₂	2³/₈～4¹/₂	2³/₈～5¹/₂	1.9～5¹/₂
Applicable range backup tong		mm	60-114	73-141.5	73-156	60-156
Applicable range backup tong		in	2⁷/₈～4¹/₈	2⁷/₈～5¹/₈	2⁷/₈～6¹/₈	2³/₈～6¹/₈
Hi-gear rated tofque		kN.m	1100	1500	2600	2600
Hi-gear rated tofque		ft.lbf	811	1106	1918	1918
Lo-gear rated tofque		kN.m	3300	6000	12000	12000
Lo-gear rated tofque		ft.lbf	2213	4425	8851	8851
Ratek Speed	High gear	rpm	90	85	72	72
Ratek Speed	Low gear	rpm	30	20	14	14
Rated pressure		MPa	10	11	12	12
Rated pressure		psi	1450	1595	1740	1740
Max.oil supply		L/min	80	100	120	120
Max.oil supply		gpm	21	26	32	32
Size		mm	650×430×550	750×500×600	1024×582×539	1050×620×900
Size		in	25.6×16.9×21.7	29.5×19.7×23.6	40.3×22.9×21.2	41.3×24.4×35.4
Weight		kg	158	220	480	480
Weight		lb	348	485	1060	1060
