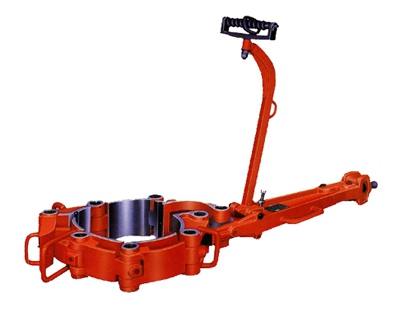

Casing Tongs

Model		TQ340-35	TQ340-35Y	TQ356-55	TQ356-55Y	TQ508-70Y	TQ340-85Y
Size	mm	114.3～340	114.3～340	114.3～356	114.3～356	114.3～340	114.3～340
Size	in	41/2～133/8	41/2～133/8	41/2～14	41/2～14	95/8～20	41/2～133/8
Max.	MPa	18	20	16.6	20	20	18
Max.	psi	2610	2900	2400	2900	2900	2610
Flow Working	L/min	110～160	110～170	110～140	110～170	110～170	110～170
	gpm	29.3～42.7	29.3～45.4	29.3～37.3	29.3～45.4	29.3～45.4	29.3～45.4
	psi	72～130		72～130
Size	mm	1580×900 ×880	1580×900 ×1060	1770×960 ×850	1770×960 ×780	2080×1280 ×760	1995×1150 ×680
Size	in	62.2×35.4 ×34.6	62.2×35.4 ×34.6	69.7×37.8 ×33.5	69.7×37.8 ×30.7	82×50.4 ×30	78.5×45.3 ×26.8
Weight	kg	780	760	1150	1100	1550	1700
Weight	lb	1720	1670	2530	2420	3410	3740
