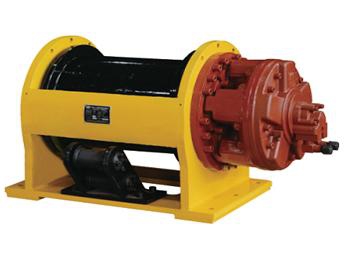

Rotary cathead

Model

YXM-2

YXM-5

YXM-13

YXM-10/3

XM-18/3

Secondary drum

Main drum

Secondary drum

Main drum

Flow rating

L/min

40

120

120

120

120

gpm

10.6

31.7

31.7

31.7

31.7

Pressure rating

MPa

16.6

16.6

16.6

16.6

20

psi

2400

2400

2400

2400

2900

Pull rating

kN

20

50

130

30

100

30

180

US ton

2.2

5.5

14.3

3.3

11

3.3

19.8

Average rope speed

m/min

30

42

14

65

15

54

10.8

ft/min

98

137

46

212

49

176

35

Wire rope diameter

mm

10

18

24

25.4coir rope

24

25

25

in

3/8

23/32

15/16

1

15/16

1

1

Rope storage

m

15

50

40

50

40

12

20single

ft

49

164

131

164

131

39

65.5

Size

mm

580*400*430

878*560*600

1120*730*750

1072*580*618

1780*1280*1220

in

23*16*17

34.5*22*23.5

44*29*29.5

42*23*24

70*50*48

Weight

kg

160

280

400

800

2484

lb

353

617

882

1764

5477
