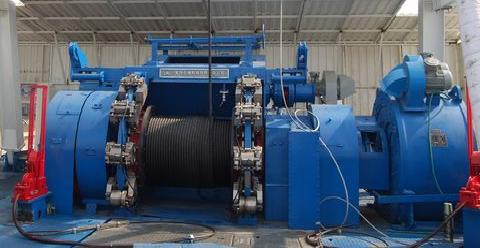

Winch

Level of Winch

Max. Power of  rope

Rated enter power

Diameter

Range of Depth

114мм

Drill pipe

127мм

Drill pipe

KN

KW

mm(in)

m

10

115

110-200(150-270)

22 (7/8)

500-1000

500-800

15

135

257-330(350-450)

26 (1)

800-1500

700-1400

20

200

330-400(450-550)

29 (1 1/8 )

1200-2000

1100-1800

30

210

400-550(550-750)

29 (1 1/8 )

1600-3000

1500-2500

40

275

735(1000)

32 (1 1/4)

2500-4000

2000-3200

50

340

1100(1500)

35 (1 3/8)

3500-5000

2800-4500

70

485

1470(2000)

38 (1 1/2)

4500-7000

4000-6000

90

575/550

2210(3000)

42 (1 5/8)

6000-9000

5000-8000

120

700

2940(4000)

52 (2)

7500-12000

7000-10000
