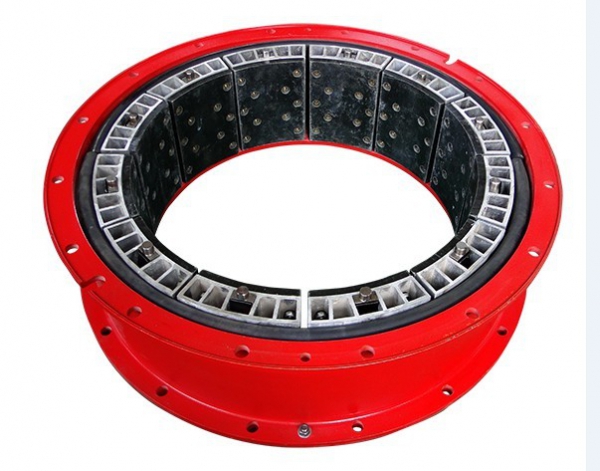

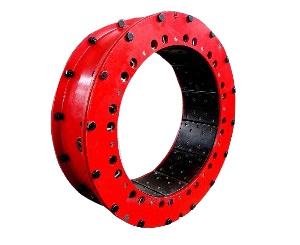

Air tube clutch

Type

LT300/100

LT500/125

LT600/125

LT700/200

LT700/135CBC

LT800/135

Drawing No.

115.101.00

115.102.00

115.105.00

105.103.00

115.107.00

T14-013-00

Rotata Speed
r/min

max

2332-2667

1642-1877

1352-1547

1315-1504

1198-1450

1099-1328

rating

1348-1542

949-1085

781-894

760-869

687-881

635-768

Torsional Moment
n·m

max

3080-4030

10455-13670

14810-19360

33080-43270

22350-32660

28850-42160

rating

2025-2686

6790-9114

9875-12908

22060-28850

14900-21775

19230-28080

Working Pressure(mpa)

0.7-0.9

0.7-0.9

0.7-0.9

0.7-0.9

0.7-1.0

0.7-1.0

Pneumatic Tube Cubage(l)

1.3

5.5

5.5

17

2—4

2.4-5

Attrition Annulus Dia(mm)

Φ300

Φ497

Φ597

Φ697

Φ700

Φ800

Join Link

Size

Max Dia

Φ450

Φ720

Φ820

Φ1000

Φ900

Φ1015

Max Width

115

154

154

246

176

176

Orientation

 Dia.

Φ450dll

Φ720h11

Φ820d9

Φ1000h11

Φ900k9

Φ1015h11

Bolt Number

 And Dia.

12-Φ13H12

12-Φ17H12

16-Φ17H12

12-Φ27H12
4-Φ25H8

20-Φ17H12

18-Φ17H12
6-Φ17H19

Bolt Distributing Dia.

Φ430

Φ690

Φ790

Φ950

Φ870

Φ975

Air Tilet Pipe screw Thread

M20×1.5

M20×1.5

M20×1.5

M33×1.52

2-M20×1.5

2-M20×1.5

Type

AVB500/200

LT500/250T

AVB600/250

LT700/250T

LT700/135DY

LT800/250T

Drawing No.

G301.21.00

T14-014-00

G301.22.00

Af24001.02.01.00A

115.31.00

115.28.00

Rotata Speed
r/min

max

1312-1578

1586-1701

1281-1544

-

1569-1890

1016-1224

rating

758-912

916-983

740-892

-

907-1092

587-707

Torsional Moment
n·m

max

17110-24970

23390-26900

32200-46710

-

24560-35630

54240-78660

rating

11406-16646

15590-17930

21466-31140

32100-47300

16170-23750

36160-52440

Working Pressure(mpa)

0.7-1.0

0.7-0.8

0.7-1.0

0.7-1.0

0.7-1.0

0.7-1.0

Pneumatic Tube Cubage(l)

13×2

3—5

2×2

2.28×2

24

2.66×2

Attrition Annulus Dia(mm)

Φ500

Φ496

Φ600

Φ700

Φ700

Φ800

Join Link
Size

Max Dia

Φ780

Φ750

Φ890

Φ1010

Φ935

Φ1115

Max Width

234

288

284

292

200

300

Orientation Dia.

Φ300H8

Φ750f9

Φ340H8
40H8×100

Φ240H8

Φ360H10

Φ1105f9

Bolt Number And Dia.

40H8×80

12-Φ18H10

12-Φ18H10

12-Φ23H10

16-Φ22H10

16-Φ22H10

Bolt Distributing Dia.

10-Φ18H10

Φ720

Φ420

Φ300

Φ400

Φ1070

Air Tilet Pipe Thread

2-G1/2〝

2-M20×1.5

2-G1/2〝

2-G1/2〝

1-M20×1.5

2-G1/2〝

Type

LT800/250T

LT900/250T

LT1070/200T

AVB1120/300

LT1170/250T

AVB1250/300

Drawing No.

115.29.00

ZB01.05.00

115.01.00

G301.25.00

115.02.00

G301.26.00

Rotata Speed
r/min

max

1016-1224

903-1087

932-1123

-

765-820

-

rating

587-707

522-628

539-668

-

445-474

-

Torsional Moment
n·m

max

54240-78660

68000-98930

84600-122670

-

117740-134130

-

rating

36160-52440

45467-65953

56400-81790

123000-175500

78490-89420

153000-218000

Working Pressure(mpa)

0.7-1.0

0.7-1.0

0.7-1.0

0.7-1.0

0.7-0.8

0.7-1.0

Pneumatic Tube Cubage(l)

2.66×2

3×2

30

3.96×2

5—7

44×2

Attrition Annulus Dia(mm)

Φ800

Φ897

Φ1055

Φ1120

Φ1168

Φ1250

Join Link
Size

Max Dia

Φ1115

Φ1230

Φ1400

Φ1450

Φ1500

Φ1580

Max Width

300

292

260

357

302

357

Orientation Dia.

Φ350H8
40H8×100

Φ1220Of9

Φ1400h11

Φ840H8
60H8×100

Φ1500h10

Φ1050H8
60H8×90

Bolt Number And Dia.

12-Φ22
H10

16-Φ22 H10

12-Φ27 H10
4-Φ25H8

20-Φ23
H10

12-Φ27
H10

16-Φ25
H10

Bolt Distributing Dia.

Φ420

Φ1184

Φ1350

Φ890

Φ1445

Φ1110

Air Tilet  screw Pipe Thread

2-G1/2"

2-G1/2"

2-M33×1.5"

2-G1/2"

2-M33×1.5"

2-G1/2"
